5.5kw Cold Roll Forming Machine For Light Steel / Metal Stud / Keel Framing

Product Categories

Cangzhou Huachen Roll Forming Machinery Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : HC

Model Number : HC-Stud

Certification : ISO

Place of Origin : Botou Hebei China

MOQ : 1set

Payment Terms : 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment

Supply Ability : 20 sets/month

Delivery Time : 30days

Packaging Details : Main machine is nude,the computer control box is packed by carton box

Power : 5.5KW

Capacity : 45m/min

Punching : available

Feature : two in one

Usage : drywall system

Contact Now

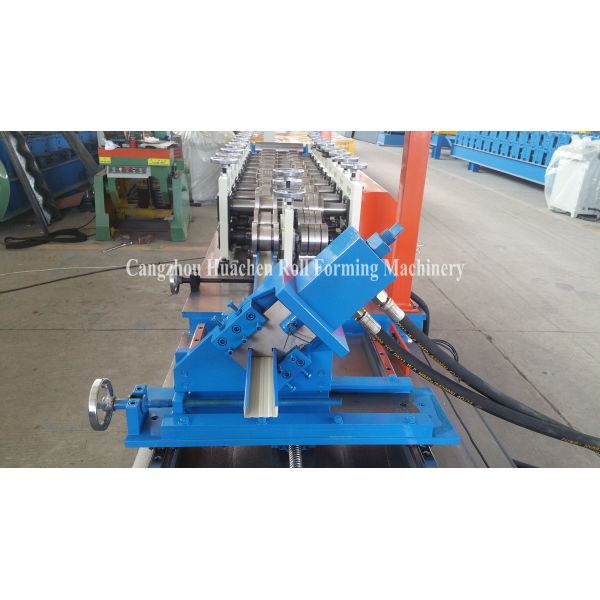

5.5Kw Cold Roll Forming Machine For Light Steel / Metal Stud / Keel Framing

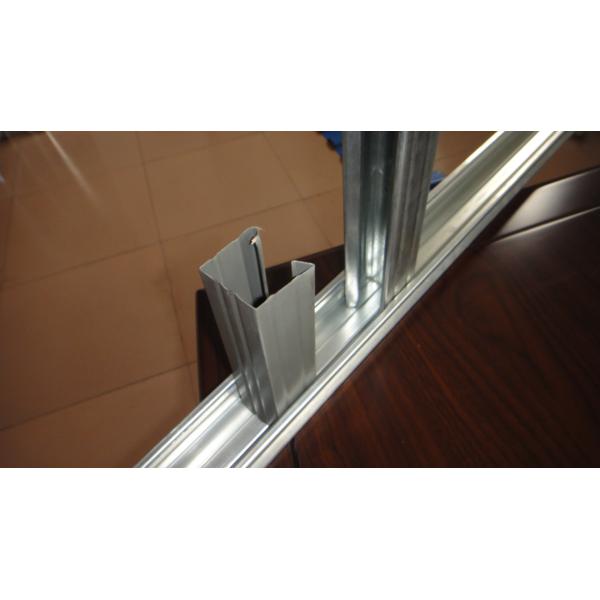

NOTE: The C Stud and U Track can make on one machine. The quotation I offer is the high speed type, the speed can reach 60m/min.

A Technical specification

5.5kw Cold Roll Forming Machine For Light Steel / Metal Stud / Keel Framing

c channel roll forming machine

2. Technical parameters:

Technical parameters:

1	Name of commodity & specification	c stud roll forming machine
2	Main motor power	3kw, 3 phase
3	Hydraulic motor power	3kw
4	Hydraulic Pressure	10-12MPa
5	Voltage	380V /3phase/ 50 HZ (or as your requirement)
6	Control System	PLC Delta Inverter
7	Main Frame	300mm H-Beam
8	Backboard Thickness	14mm
9	Chain Size	20mm
10	Feeding Material	color steel coils
11	Feeding Thickness	0.3-1.2mm

12	Productivity	8-12m/min
13	Roll Station	11
14	Roller Diameter	70mm
15	Roller material	45# steel
16	Cutter material	Cr12 , quenched
17	Cr-Plating Size	0.05mm
18	Overall Size	3000×800×1000mm
19	Total Weight	2T
20	Components	Manual Uncoiler-------------------1 set Guiding Platform------------------1 set Coil Strip Leveler------------------1 set Main Machine of Roll Forming------1 set Electric-Motor---------------------1 set Cutting Device--------------------1 set Hydraulic Station------------------1 set PLC Control-----------------------1 set Supporter Table-------------------1 set








21	Workflow	Manual decoiling----feeding and guiding----roll forming----cut to length----run out table

22	Package	nude in the container
23	Minimum order quantity	1 set
24	Payment terms	T/T(30% T/T pay in advance, the remaining 70% pay before ship)

25	Delivery time	30 working days later after receiving the deposit
All technical parameters can be changed, according to user's need.
