.Product Description
After the equipment is started, the rolled metal sheet is first placed on the unwinder, smoothly unrolled and transported to the leveling device. The leveling device repeatedly rolls the sheet through multiple sets of leveling rollers, effectively eliminating the unevenness of the sheet during transportation or storage, ensuring that the sheet entering the subsequent forming process is in a flat state, laying the foundation for precise forming.
Main Technical Parameters
| Material | Type | PPGI/GI |
| Thickness | 0.3-0.6mm |
| Width | 1220mm |
| Roller Stations | 15Stations |
| Roller & Shaft Material | 45# Steel Quenching and Plating |
| Diameter of Shaft | Φ70mm |
| Cutter Material | CR12 |
| Drive Type | Chain Drive |
| Speed | 4m/min |
| Total Power | 5.5+5.5KW |
| Voltage | 380V 50Hz 3Phases |
Working Flow
Decoiling → Material Feeding → Roll Forming → Cutting → Collecting
Component & Technical Parameters
This part is used to support Coil.
And make the coil in a rotary way.
Bearing capacity: 5T
Inner diameter: 470-530mm
Able to accommodate a variety of metal coils of different specifications, including different widths, thicknesses and materials
Hydraulic Pump Station
When the equipment encounters abnormal resistance or excessive pressure, it can automatically adjust the pressure of the hydraulic system to avoid damage to the equipment due to overload, thereby improving the reliability and stability of the floor deck forming machine.
Touch Screen Control Cabinet
The control cabinet has two modes, automatic and manual modes.
The unit length of the targeted sheet and quantity can be set in the touchscreen.
The system is simple and easy to operate.
The control cabinet can be interconnected with other equipment, such as working with the uncoiler, hydraulic pump station, etc., to ensure the efficient and stable operation of the entire floor decking forming machine system, providing a strong guarantee for the production of high-quality floor decking.
Feeding Table & Pre-Cutter
The feeding table also has a certain buffering function. When there is a short speed fluctuation in the upstream uncoiler or downstream forming equipment, the feeding table can maintain the continuity of material transportation through its own buffering mechanism to avoid production stagnation or sheet damage caused by speed differences.
Shaft & Roller
Material is 45# Steel Quenching and Plating.
The processed rollers are smooth, hard and will not rust.
Will not leave any scratches on the sheet when working.
They accurately shape specific waveforms, rib heights and contours according to the design requirements of the floor deck. The accuracy and surface quality of the rollers directly determine the final forming accuracy and surface quality of the floor deck

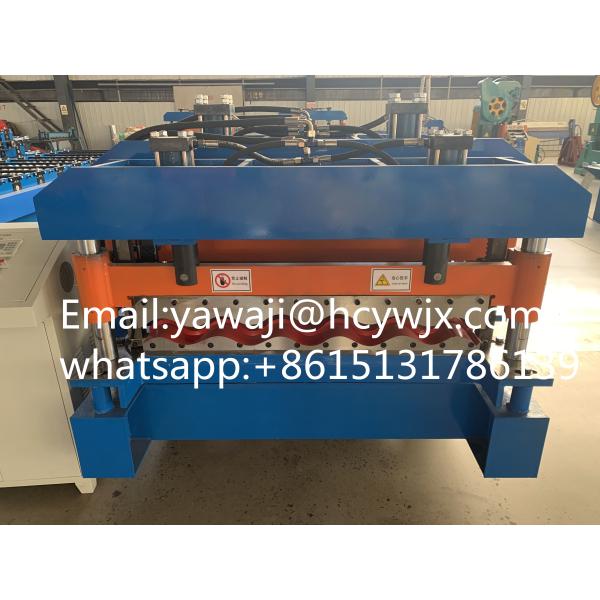

Pressing Section & Cutter
The material of blade is CR12.
With high strength, better hardenability and good wear resistance.
This equipment not only retains the beautiful and elegant characteristics of traditional glazed tiles, but also gives the product many advantages of modern metal materials. It is widely used in various construction projects that pursue beauty and quality, adding unique charm to building roofs and walls.
